Katahdin Circle

Designed to work with the Katahdin and Grand Katahdin. One pallet will produce two 7′ circles or one 9′ 10″ circle.

(4 layers per 7′ circle)

Please allow some spacing between stones for laying styles. Spare stones are included in the pallet.

WHERE TO BUY PRODUCT GUIDE RESOURCES

Product Photo Gallery

Product Information

- Pallet Weight
- 2,141 lbs
- Sq. Ft per pallet
- 82.5 sq ft
- Layers per pallet
- 8
- Sq. Ft per layer
- 10.31 sq ft
* All five sizes are together on one pallet.

Center Piece
- Height
- 2 3/8" (60 mm)
- Units/Pallet
- 8
- Units/Layer
- 1

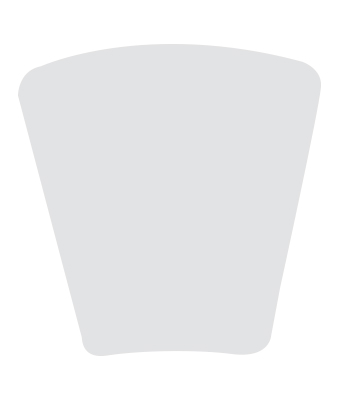

Large Wedge
- Height
- 2 3/8" (60 mm)
- Units/Pallet
- 16
- Units/Layer
- 2

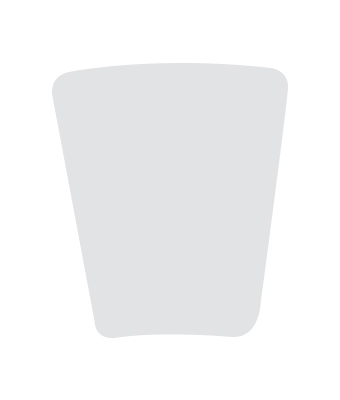

Small Wedge
- Height
- 2 3/8" (60 mm)
- Units/Pallet
- 240
- Units/Layer
- 30

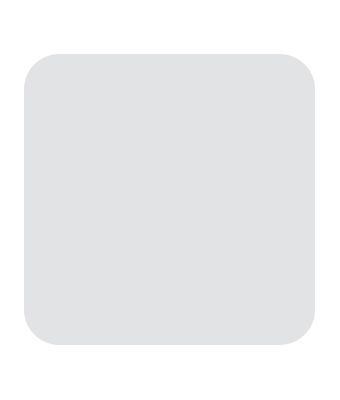

Square
- Height
- 2 3/8" (60 mm)
- Units/Pallet
- 104
- Units/Layer
- 13

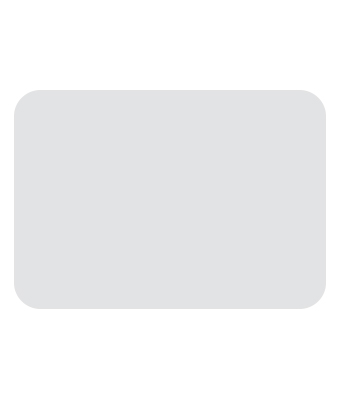

Rectangle
- Height
- 2 3/8" (60 mm)
- Units/Pallet
- 80
- Units/Layer
- 10

Laying Styles

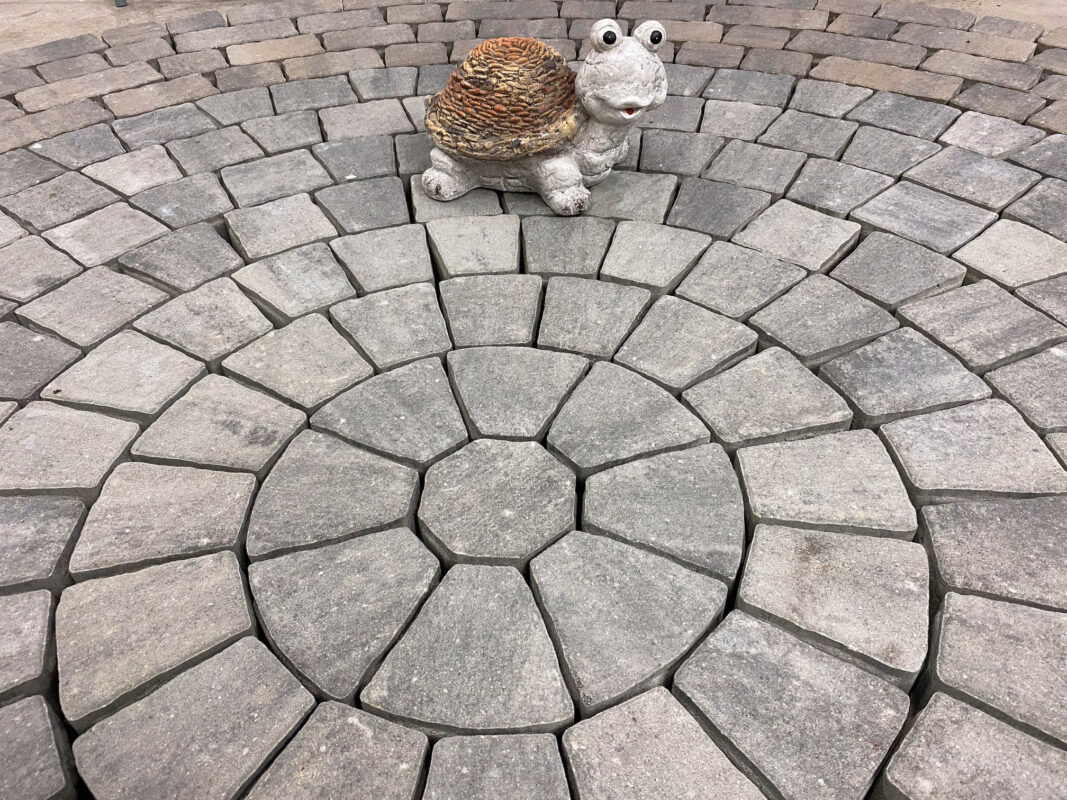

7 Foot Circle Layout

Ring 1: 8 large wedges Ring 2: 16 small wedges Ring 3: 24 small wedges Ring 4: 15 small wedges + 15 rectangles Ring 5: 18 small wedges, 9 rectangles + 9 squares Ring 6: 21 small wedges, 11 rectangles + 12 squares Ring 7: 24 small wedges, 24 squares + 1 rectangle Ring 8: 29 small wedges, 15 squares + 14 rectangles Ring 9: 32 small wedges, 17 squares + 16 rectangles Ring 10: 35 small wedges, 25 squares + 11 rectangles. NOTE: Some laying styles may not reflect the number of stone sizes within a pallet. In some cases you may have extra or less stones in your design. Examples are not repeating patterns.
